Quick Details
Place of Origin | Beijing, China (Mainland) |
Brand Name | Kimton house |
Model Number | custom-made |
Material | Container |
Use | Carport, Hotel, House, Kiosk ,Booth, Office, Sentry Box, Guard House, Shop, Toilet, Villa, Warehouse, Workshop, Plant, Other |
Size | container house for sale house |
Color | White, it can be customer request if quantity is large |
Structure | Galvanized Steel Frame with Marine Paint |
Insulation | PU, Rock wool or EPS |
Window | Aluminum or PVC |
Door | Steel Clean room Door |
Floor | Vinyl sheet on Poly wood or Cement board |
Lifespan | 30 years |
Dimension(mm)&Weight(kg)
Type | External | Internal | Weight (kg) | |||||
Length | Width | Height (package) | Height (assembled) | Length | Width | Height | ||
20’ | 6055 | 2435 | 648/864 | 2591/2790 | 5860 | 2240 | 2500 | from 1850 |
Floor
Steel frame | - made from cold rolled, welded steel profiles, 4 mm thick |
- 4 corner casts, welded | |
- 2 fork lift pockets (except 30’) - distance 1200mm (internal clearance of fork lift pockets: 240×80 mm) | |
- steel cross members, thickness=2mm | |
Insulation | - 100 mm thick Rock Wool |
Subfloor | - 0.5mm thick, galvanized steel sheet |
Floor | - 18mm plywood board |
- 1.8mm PVC floor - flammability class B1 - hardly combustible - smoke density class Q1 - low smoke emission - wear resistance factor: T level |
Details
Roof
Steel frame | - made from cold rolled, welded steel profiles, 3mm thick |
- 4 corner casts, welded | |
- steel cross members, thickness=2mm | |
Roof cover | - 0.5mm thick, galvanized steel sheet - 360 degree seaming at joint of roof panels |
Insulation | - 100 mm thick Rock Wool |
Ceiling | - 10 mm chipboard (V 20), laminated on both sides, white - the chipboard complies with the emission value E1 |
CEE connector | - sunken in frame on short end side |
Insulation
Rockwool | - density:120kg/m3 |
- flammability class A- non combustible - smoke density class Q1 - low smoke emission | |
- certificated: CE & GL | |
eps | - density:18kg/m3 |
- flammability class B1- non combustible - smoke density class Q1 - low smoke emission | |
- certificated: CE & GL |
Assembly Process

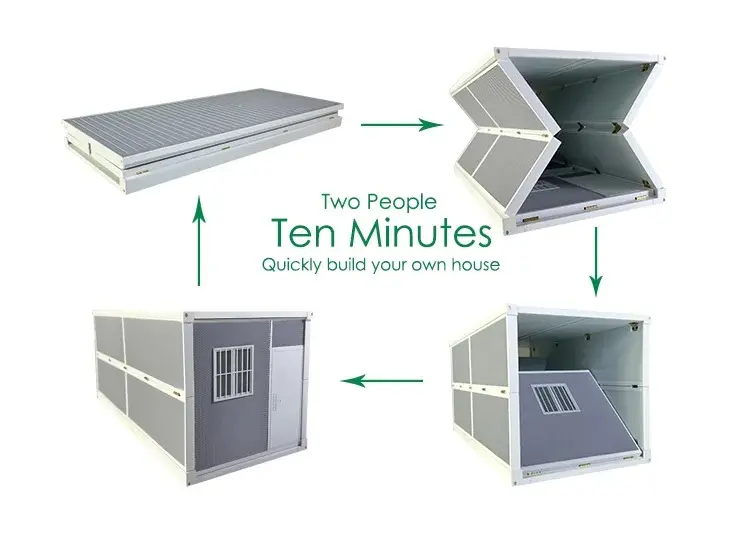

Easy to be Assemble and disassemble. Four workers can complete one unit in half day.
Packing and Transportation
From our factory to overseas client, there are two ways to delivery the houses. If your port can accept SOC (Shipper’s Owned Container), 4 standard cabins can be packed as a 20ft container and shipped naked. If can not, 7standard cabins can be loaded into one 40ft HC.
Advantages
Box integrated housing is standardized and modularized. It can apply to office, meeting room, staff quarters precast shops, prefabricated factories, etc.
Box integrated housing is standardized and modularized. It can apply to office, meeting room, staff quarters precast shops, prefabricated factories, etc.
1. Convenient transportation and hoisting.
2. High thickness of material.
3. Beautiful appearance: the wall is color steel sandwich panels connect with small plate, and it has a smooth surface.
4. Strong weather resistance: To prevent the corrosion of acid, alkali, and salt, suitable for a variety of wet and corrosive environment. With features of waterproof, soundproof, insulation, sealing, easy cleaning and maintaining.
Description
Completed as 1 set! Available in Packs! 4 min install 1 house! All steel structure galvanized & painted, Folding Structure VERY reliable, the wall & roof material is fire proof & water proof, well insulated. Come with COMPLETE WALL, ROOF, ELECTRICS & FLOOR. Can be used for Disaster relief, site office, accommodation, storage, Emergency Function, Outdoor Cafe, etc. WELLCAMP Folding Container 2.5mX5.8 mX2.6H, area = 14.5m2, 1*40`HQ can load 12 sets.
Use fire proof IEPS sandwich panel for wall & roof! BEST option for site accommodation, Fast Deploy Camp set up! Already sell to USA, Germany, France, Australia, Oman, Saudi Arabia, Qatar, Indonesia, Philippines, Thailand, Kenya & many other countries.
Electric wires run inside ceiling & walls, including power inlet & lights. Sockets & Switch included. Fully Welded Top frame + truss & Bottom frame + supports ensure product strength!

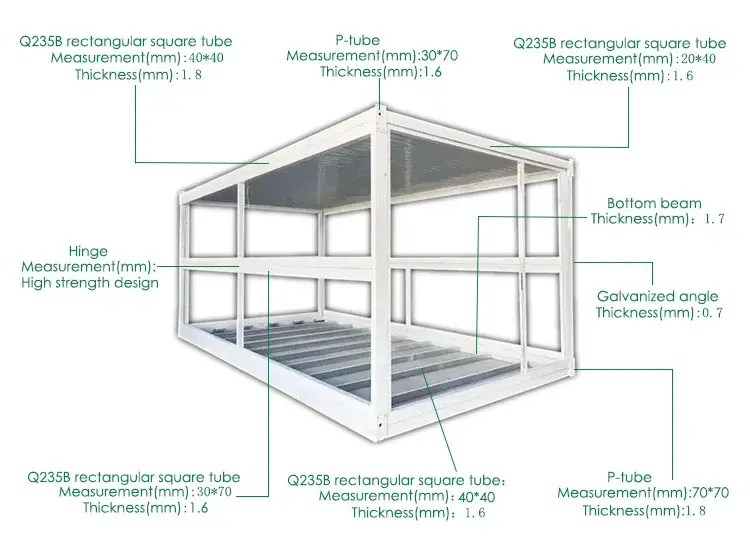

Kimton House Group standard box technical parameters | |||
Basic Characteristics | External dimensions(mm) | 5800L*2440W*2500H | |
Internal dimension(mm) | 5640L*2320W*2400H | ||
Folded state (mm) | 5800*2440*400 | ||
Total mass (kg) | 1100 | ||
Frame Structure | Top girder | Q235B Rectangular square tube 60*80*1.3mm | |
Bottom girder | Q235B Rectangular square tube 80*140*1.5mm | ||
Front and rear main beam | Q235B Rectangular square tube 80*80*1.3mm | ||
Side wall frame | Q235B Rectangular square tube 40*80*1.3mm | ||
Bottom load-bearing | Q235B Rectangular square tube 40*40*1.3mm | ||
Top load-bearing | Q235B Rectangular square tube 40*40*1.3mm | ||
Hanging head | Q235B 125*200*(4mm) | ||
Folding hinges | Galvanized hinge 13mm | ||
House Top | Overall Frame Protection Coatings | Electrostatic spray/high-gloss white | |
External top plate | 0.5mm Galvanized sheet | ||
Internal ceiling | Color steel veneer V930*0.25㎜ | ||
Wall Panel | Insulation glass wool | Glass wool roll 50mm | |
Side wall | 50mm composite board 0.23mm+basalt wool+0.23mm | ||
Front and rear wall panels | 65mm composite board 0.23mm+basalt wool+0.23mm | ||
Floor | Fireproof glass magnesium floor 15mm | ||
Electrical System | Electrical wiring is installed in strict accordance with moisture-proof specifications, and all electrical products must comply with CE certification. Connect the circuit according to circuit engineering specifications, indoor: 4² national standard soft copper wire, 1 20A circuit breaker, 2.5² incoming socket , 1 five-hole single-opening socket, 1 ten-hole socket, 1 air conditioner socket, 1 lamp indivual. | ||
Security Door | High quality security door (warm white) size: 930mm*1970mm | ||
Window | 930*930 plastic steel anti-theft integrated window, glass thickness 4mm (warm white) | ||
Quality Assured | The whole box as a whole meets the A-level fire protection standard. | ||
Folding Container house features
Advantage: Come as 1 completed set; FASTEST install in the world, cost-saving, time-saving , labor-saving and transportation convenient.
Mobility: can move by Crane or Forklift.
Electricity: Standard in 1 unit included 2 sockets, 1 switch, 2 LED lights (220V/50Hz,GB or base on requirements).
Wall & roof: water proof, corrosion-resistance, sound-insulating, heat-insulating; Environmental-friendly materials, can be folded & unfold. Can use for 15-25 years.
Structure: Standard; All the steel structures are galvanized & painted, normally can use for more than 50 years.
